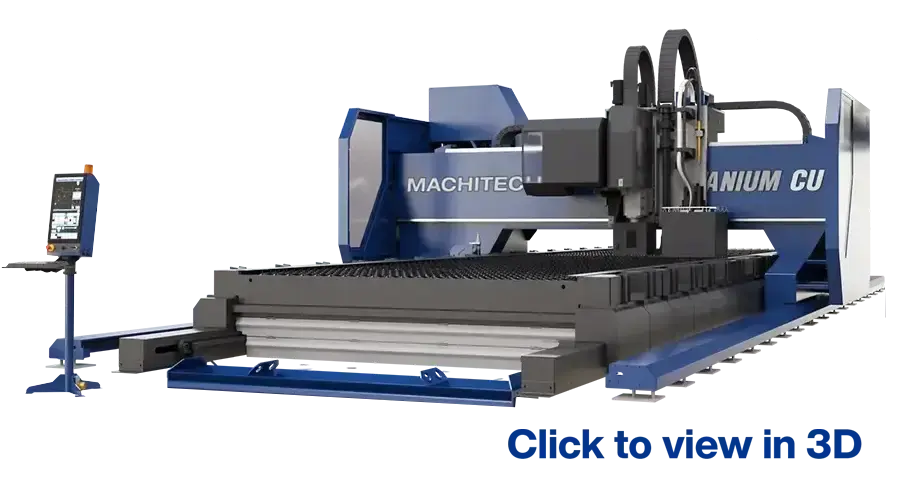

The Titanium Cut - CNC Plasma Cutting System

DRILLING, MILLING & TAPPING.
EXTRA LARGE FORMAT.

The new Titanium Cut plasma cutting system combines plasma cutting with 50HP drilling, milling and tapping. With sizes up to 20'x300' and multi-gantry designs, it truly is the ultimate customizable workhorse machine.
titanium-showcase

UP TO 30'x300'

TABLE SIZES

XPR SERIES

PLASMA BY HYPERTHERM

50HP

DRILLING, MILLING AND TAPPING

ON-SITE

INSTALLATION AND TRAINING

STANDARD FEATURES

tc-gantry (2)

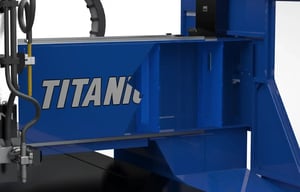

Ultra robust gusseted gantry
The Titanium Cut features our most vibration-resistant gantry yet: a 40×20″ gusseted, filled 3/8″ steel structure, reinforced every 30″ for unmatched strength and precision. Built smart with safety features, anti-slip surfaces, windowed guards, and a frontal light curtain.

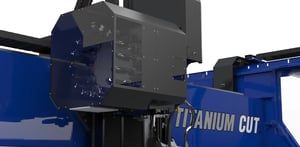

50HP DRILLING & MACHINING SYSTEM
It features an integrated chip collection system with removable bins, reducing cleanup time and maintaining a clean cutting environment while maximizing throughput and tool life.
tc-drill
tc-rails

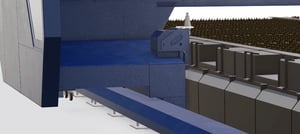

INVERTED RAILS SYSTEM - PATENTED
Our patented inverted linear rails are floor mounted and completely covered to stay protected from debris, ensuring cleaner operation, lasting precision, and reduced maintenance in tough industrial environments.

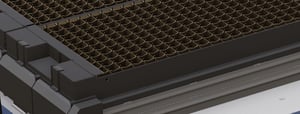

CUT N' CLEAN™ SLAG REMOVAL SYSTEM
The Cut N' Clean™ system is an automated slag removal solution designed to keep your cutting table clean with minimal operator intervention. It pushes material to the front of the machine, either onto the floor or into a customer supplied pit.
tc-bed2
nx4-controller
Machitech NX4 CNC Controller
The Machitech NX4 CNC controller offers intuitive touchscreen interface, advanced diagnostics, customizable workflows, 4.0 analytics and real-time monitoring, ensuring seamless operation, faster setup, and maximized productivity.
Hypertherm Pronest 2025 CAD SOFTWARE
ProNest 2025 CAD/CAM is the ultimate nesting software solution from Hypertherm. ProNest 2025 supports all cutting processes, True Hole, automation, ERP integration, advanced nesting, management, recovery.
pronest-lt-pc
Show more
  • Table Sizes - Customizable, 8’ x 20’ up to 30’ x 300’
  • Reinforced Steel Gantry - 40" x 20" Gusseted Steel Gantry
  • Gantry and Rails Design - Build your own bed using our drawings
  • 50HP Drilling Station - Drilling, Tapping and Machining up to 4"
  • Chip Extraction System - Gets Collected in a Removable Bin
  • Rotary Tool Changer - 16 Stations, CAT50 Tools, Quick Load
  • Cut N' Clean System - Optional Automated Slag Removal System
  • Hypertherm Plasma - XPR170, XPR300, XPR460, Multiple Torches
  • Machitech NX4 Controller - Intuitive Touchscreen Interface
  • 4.0 Stat Analytics - Built Into the Controller
  • Pronest LT CAD Software - Pronest 2025 also available as option
  • Inverted Linear Rails - Protects the Rails Against Dust and Impacts
  • Automatic Torch Height - Maintains Optimal Arc Length While Cutting
  • Full Process Database - Integrated and Tested Parameters/Cut Charts
ON-SITE BY SPECIALISTS
INSTALLATION AND TRAINING
FOR THE LIFE OF THE MACHINE
UNLIMITED REMOTE SUPPORT
AVAILABLE WHEN YOU NEED
LARGEST SUPPORT NETWORK
machicare_transparent
INCLUDED WITH THIS MACHINE

MACHINE SPECIFICATIONS

MODELS
8' x 20'  -  30' x 300'
OPERATIONAL DATA →
Hypertherm Plasma
XPR170, XPR300, XPR460
Table Type
Water or Downdraft
Max. Plate Thickness
8" (200 mm)
Z-Axis Clearance
12" (300 mm)
Max. Cutting Speed
500 ipm (12700 mm/min)
Max. Rapid Traverse
800 ipm (20320 mm/min)
Positional Accuracy
0.003" (0.07 mm)
Repeatability
0.001" (0.03 mm)
Workpiece Weight
325 lbs/sq. ft.
FEATURES AND OPTIONS →
Install / Training
Included, On-Site
Remote Support
Included, Unlimited
Material Support
Optional, Air or Water
Cut N' Clean™
Optional
Chip Extraction
Optional
5-Axis Bevel Head
Optional
Inkjet / Dot Peen
Optional
Oxyfuel Cutting
Optional, Up to 8x
Show more
