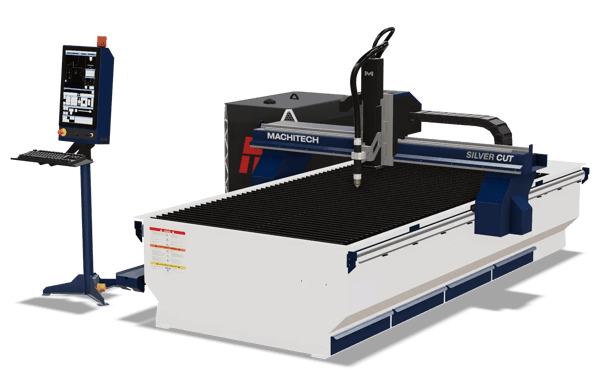

The Silver Cut - CNC Plasma Table

HIGH DEFINITION.
COMPACT FOOTPRINT.

The Silver Cut is Machitech’s compact, high-definition CNC plasma table featuring the Hypertherm XPR170 CorePlus plasma system for very thin up to mid-range thicknesses. Durable, low-maintenance, and easy to use.
sc-intro (1)

5x10 to 6x20

TABLE SIZES

XPR170

PLASMA BY HYPERTHERM

1.5"

PRODUCTION CUTS

ON-SITE

INSTALLATION AND TRAINING

STANDARD FEATURES

sc-gantry2-1

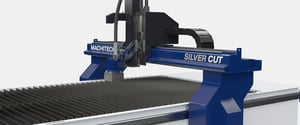

ROBUST STEEL GANTRY
The Silver Cut machine features a 6"x6" robust steel gantry with low inertia, enabling high definition cutting at high speed with precise repeatable quality.

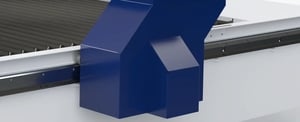

DUAL SIDE - SERVO MOTORS
Industry leading motion features dual‑side drive with powerful servo motors and drive system to deliver fast acceleration and most accurate positioning.
sc-drives2-1
sc-slats-1
ROBUST TABLE - OFFSET SLATS
Offered with downdraft or Water table. It features laser cut slat brackets and an offset slat pattern for maximum plate support rigidity. Parts retrieval is easy thanks to drawers on the downdraft model and removable pans on the water table.

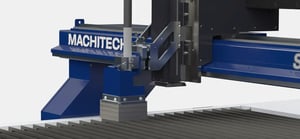

AUTOMATIC TORCH HEIGHT CONTROL
The Silver Cut torch height control maintains optimal arc length, compensating material variations in real-time, ensuring consistent cut quality, reduced consumable wear, and minimal dross formation.
sc-thc-1
nx4-controller

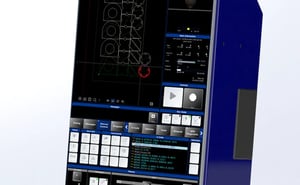

Machitech NX4 CNC Controller
The Machitech NX4 CNC controller offers intuitive touchscreen interface, advanced diagnostics, customizable workflows, 4.0 analytics and real-time monitoring, ensuring seamless operation, faster setup, and maximized productivity.

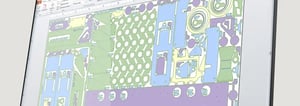

Hypertherm Pronest 2025 CAD SOFTWARE
ProNest 2025 CAD/CAM is the ultimate nesting software solution from Hypertherm. ProNest 2025 supports all cutting processes, True Hole, automation, ERP integration, advanced nesting, management, recovery.
pronest-lt-pc
Show more
  • Table Sizes - 5'x10', 5'x20', 6'x12' and 6'x20' table sizes
  • Robust Steel Gantry - 6"x6" Steel Gantry, Low Inertia
  • Downdraft or Water - Drawers or Removable Slag Pans
  • Dual V-Rails Motion - Self Cleaning V Groove Bearings
  • Powerful Motors - Servo Motors on All Axis, Zero Backlash
  • Hypertherm Plasma - XPR170 CorePlus, Maxpro200, PowerMax
  • Machitech NX4 Controller - Intuitive Touchscreen Interface, 4.0
  • Pronest LT CAD Software - Pronest 2025 also available as option
  • Laser Positioning System - Allows for Easy Plate Positioning
  • Automatic Torch Height - Maintains Optimal Arc Length While Cutting
  • Full Process Database - Integrated and Tested Parameters/Cut Charts
ON-SITE BY SPECIALISTS
INSTALLATION AND TRAINING
FOR THE LIFE OF THE MACHINE
UNLIMITED REMOTE SUPPORT
AVAILABLE WHEN YOU NEED
LARGEST SUPPORT NETWORK
machicare_transparent
INCLUDED WITH THIS MACHINE

MACHINE SPECIFICATIONS

MODELS
5' x 10'
5' x 20'
6' x 12'
6' x 20'
OPERATIONAL DATA →
Processing Range
66" x 126" (1676 x 3200 mm)
66" x 252" (1676 x 6400 mm)
78" - 150" (1980 x 3810 mm)
78" - 252" (1980 x 6400 mm)
Table Type
Water or Downdraft
Downdraft
Water or Downdraft
Downdraft
Plasma Amperage
170A, 200A, 45-125A
170A, 200A, 45-125A
170A, 200A, 45-125A
170A, 200A, 45-125A
Max. Plate Thickness
1.5" (38 mm)
1.5" (38 mm)
1.5" (38 mm)
1.5" (38 mm)
Z-Axis Clearance
7.5" (190 mm)
7.5" (190 mm)
7.5" (190 mm)
7.5" (190 mm)
Max. Cutting Speed
600 ipm (15240 mm/min)
600 ipm (15240 mm/min)
600 ipm (15240 mm/min)
600 ipm (15240 mm/min)
Max. Rapid Traverse
1000 ipm (25400 mm/min)
1000 ipm (25400 mm/min)
1000 ipm (25400 mm/min)
1000 ipm (25400 mm/min)
Positional Accuracy
0.003" (0.07 mm)
0.003" (0.07 mm)
0.003" (0.07 mm)
0.003" (0.07 mm)
Repeatability
0.002" (0.05 mm)
0.002" (0.05 mm)
0.002" (0.05 mm)
0.002" (0.05 mm)
Workpiece Weight
3060 lbs (1388 kg)
6120 lbs (2775 kg)
4410 lbs (2000 kg)
7350 lbs (3330 kg)
FEATURES AND OPTIONS →
Install / Training
Included, On-Site
Included, On-Site
Included, On-Site
Included, On-Site
Remote Support
Included, Unlimited
Included, Unlimited
Included, Unlimited
Included, Unlimited
Laser Positioning
Included
Included
Included
Included
Manual Bevel
Optional
Optional
Optional
Optional
Pneumatic Scribing
Optional
Optional
Optional
Optional
Oxyfuel Cutting
Optional, Choice of fuel
Optional, Choice of fuel
Optional, Choice of fuel
Optional, Choice of fuel
Pipe Cutting
Optional, 1.6 to 8" ø
Optional, 1.6 to 8" ø
Optional, 1.6 to 8" ø
Optional, 1.6 to 8" ø
MACHINE DIMENSIONS →
Nominal Size
5' x 10'
5' x 20'
6' x 12'
6' x 20'
Total Width
95" (2416 mm)
95" (2416 mm)
107" (2720 mm)
107" (2720 mm)
Total Length
167" (4232 mm)
290" (7380 mm)
191" (4840 mm)
290" (7380 mm)
Total Height
72" (1816 mm)
72" (1816 mm)
72" (1816 mm)
72" (1816 mm)
Machine Weight
3140 lbs (1424 kg)
5140 lbs (2330 kg)
3800 lbs (1720 kg)
5680 lbs (2575 kg)
Show more
