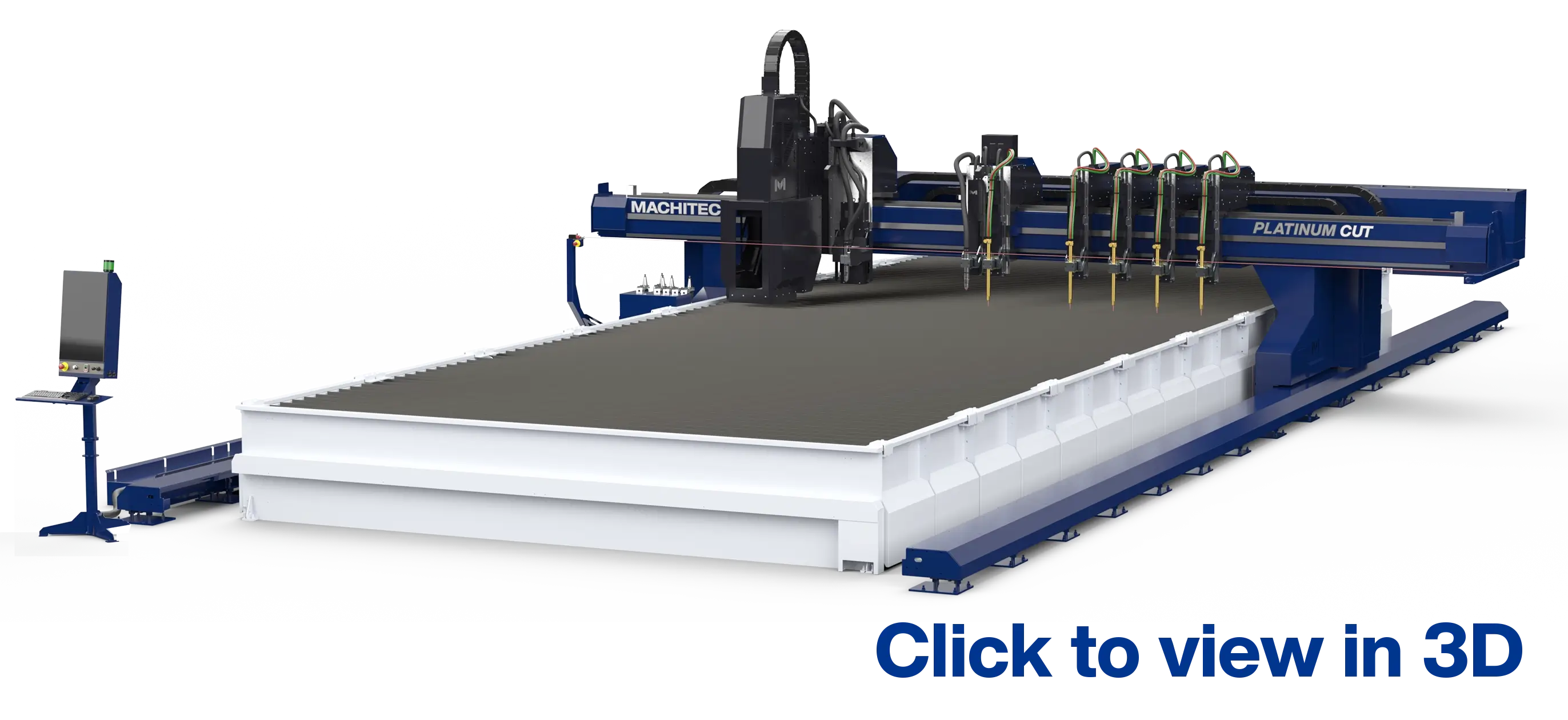

The Platinum Cut - CNC Plasma Cutting System

MULTI-PROCESS MACHINE.
ULTIMATE CUSTOMIZATION.

The Platinum Cut is the ultimate customizable bridge and rails cutting solution: use / build your own bed, single or double gantry, multi-process, up to 8 oxy stations, 20HP drill, Cut ‘n Clean, etc. Engineered and built tough for unmatched power, reliability and flexibility.
pc-slider-page-3d (1)-1

UP TO 30'x300'

TABLE SIZES

XPR SERIES

PLASMA BY HYPERTHERM

BRIDGE & RAILS

FULLY CUSTOMIZABLE OPTIONS

ON-SITE

INSTALLATION AND TRAINING

STANDARD FEATURES

pc-slider1

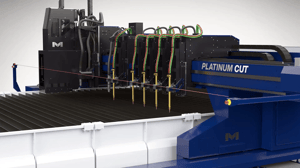

CUSTOMIZABLE BRIDGE & RAILS SYSTEM
The Platinum Cut offers flexibility with modular gantry spans and customizable rail lengths. The bridge design can be used with existing material supports, can be built by the customer using the supplied drawings or can be supplied by Machitech.

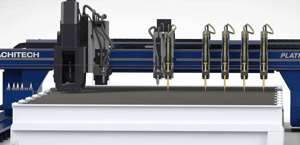

MADE FOR YOU WITH LIMITLESS VARIATIONS
Customize your Platinum Cut with multiple gantries, up to four plasma torches with 5-axis bevel, eight adjustable oxyfuel stations, pipe cutting, inkjet marking plus more: truly limitless variations.
pc-customize-1
pc-inverted-rails-1

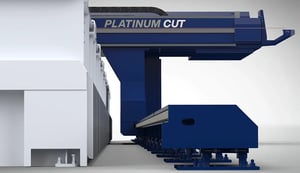

INVERTED RAILS SYSTEM - PATENTED
Our patented inverted linear rails are floor mounted and completely covered to stay protected from debris, ensuring cleaner operation, lasting precision, and reduced maintenance in tough industrial environments.

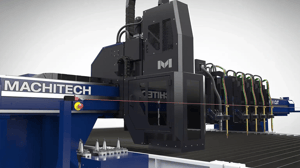

OPTIONAL 20HP DRILL HEAD
The optional 20 hp drilling station drills holes up to 2″ and taps up to 1″, incorporates a fully enclosed guard for maximum safety, and offers a 4-station CAT40 automatic tool changer.
pc-drill20hp
nx4-controller
Machitech NX4 CNC Controller
The Machitech NX4 CNC controller offers intuitive touchscreen interface, advanced diagnostics, customizable workflows, 4.0 analytics and real-time monitoring, ensuring seamless operation, faster setup, and maximized productivity.
Hypertherm Pronest 2025 CAD SOFTWARE
ProNest 2025 CAD/CAM is the ultimate nesting software solution from Hypertherm. ProNest 2025 supports all cutting processes, True Hole, automation, ERP integration, advanced nesting, management, recovery.
pronest-lt-pc
Show more
  • Table Sizes - Customizable, 8’ x 20’ up to 30’ x 300’
  • 12" x 12" Steel Gantry - Oversized Steel Gantry, Fully Covered
  • Bridge and Rails Design - Build your own bed using our drawings
  • Floor Mounted Inverted Rails - Fully Covered and Protected
  • Ultra precise motion - Linear Rails on All Axis, 35mm Rack and Pinion
  • Magnetic Torch Breakaway - Disengages on Torch Impacts
  • Customizable Options - 1-8 Oxyfuel, 20HP Drill, Cut N'Clean, etc.
  • Hypertherm Plasma - XPR170, XPR300, XPR460, Multiple Torches
  • Machitech NX4 Controller - Intuitive Touchscreen Interface
  • 4.0 Stat Analytics - Built Into the Controller
  • Pronest 2025 CAD Software - Includes Hypertherm CAD/CAM
  • Inverted Linear Rails - Protects the Rails Against Dust and Impacts
  • Automatic Torch Height - Maintains Optimal Arc Length While Cutting
  • Full Process Database - Integrated and Tested Parameters/Cut Charts
ON-SITE BY SPECIALISTS
INSTALLATION AND TRAINING
FOR THE LIFE OF THE MACHINE
UNLIMITED REMOTE SUPPORT
AVAILABLE WHEN YOU NEED
LARGEST SUPPORT NETWORK
machicare_transparent
INCLUDED WITH THIS MACHINE

MACHINE SPECIFICATIONS

MODELS
8' x 20'  -  30' x 300'
OPERATIONAL DATA →
Hypertherm Plasma
XPR170, XPR300, XPR460
Table Type
Water or Downdraft
Max. Plate Thickness
8" (200 mm)
Z-Axis Clearance
12" (300 mm)
Max. Cutting Speed
500 ipm (12700 mm/min)
Max. Rapid Traverse
800 ipm (20320 mm/min)
Positional Accuracy
0.003" (0.07 mm)
Repeatability
0.001" (0.03 mm)
Workpiece Weight
325 lbs/sq. ft.
FEATURES AND OPTIONS →
Install / Training
Included, On-Site
Remote Support
Included, Unlimited
Material Support
Optional, Air or Water
Second Gantry
Optional
Cut N' Clean™
Optional
Drilling 20HP
Optional, up to 2"
Tool Changer
Optional, (4) CAT40 Stations
5-Axis Bevel Head
Optional
Inkjet / Dot Peen
Optional
Oxyfuel Cutting
Optional, Up to 8x
Pipe Cutting
Optional, 1.6 to 8" ø
